Stairmaster® Safety Renovation Treads

STAIRMASTER® Treads Provide…

A heat-treated, corrosion resistant, extruded aluminum base
with satin/lacquered finish. The use of diamond-hard aluminum
oxide in the filler assures long tread life under heavy pedestrian
traffic. Designed for inside or outside use. They are designed
for the modernization and restoration of all types of stairs, while
also providing excellent anti-slip protection.

Specify Stairmaster® for:
Heavy Pedestrian Traffic
Indoor or Outdoor Use
Excellent Safety Protection
For Existing Stairs
Non-combustible

See the Supergrit®/Stairmaster® color chart stairmaster color chart OR Get Supergrit®/Stairmaster® color chart PDF

Leed(Stairmaster®)

Two-tone treads with contrasting color available.
Wooster Products Leveling Compound is available to fill/level worn steps before installing Stairmaster® treads.
Use construction adhesive in addition to mechanical fasteners for the best installation results.
Special tread sealer available for wood or saltwater applications.
Most styles available up to 12’0″ in one section.
Drilled and countersunk holes are standard unless otherwise specified. Beveled ends, countersunk holes and tapcon screws are standard, unless specified.

Coverage of treads

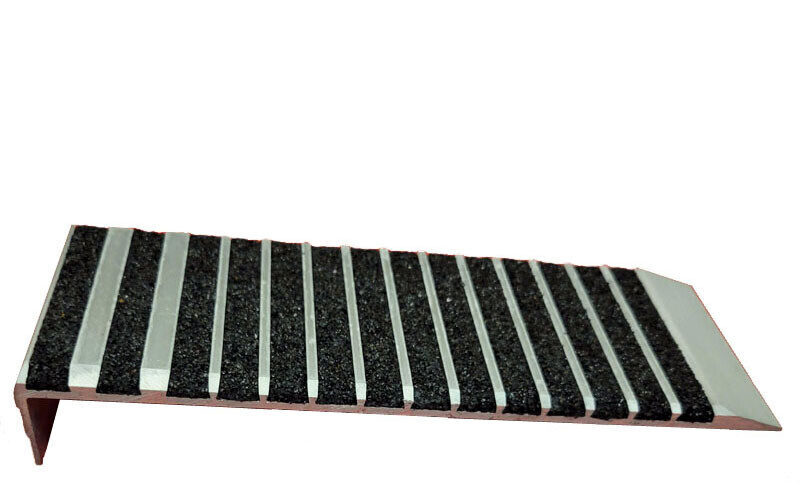

Type 500 – width 9″ – nose 1 1/8″.
Two-tone available at additional cost
Get: or or or

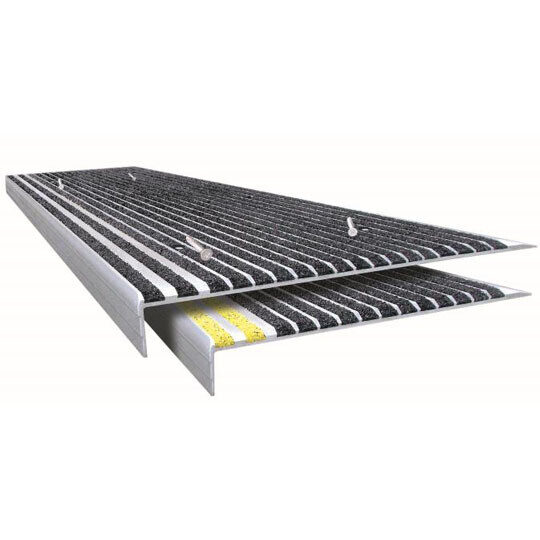

511

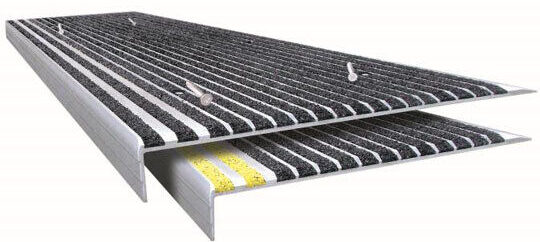

Type 511 – width 11″ – nose 1 1/8″.
Two-tone available at additional cost
Get: or or or

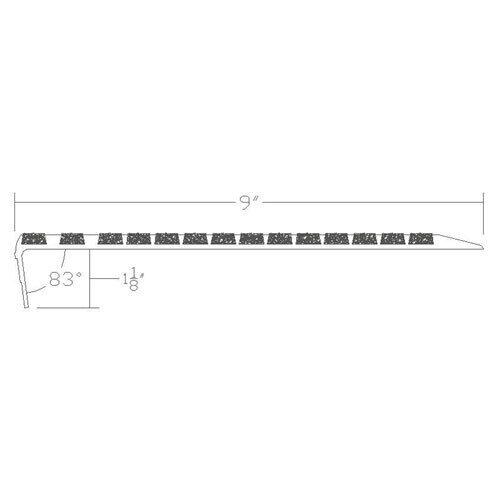

500SN

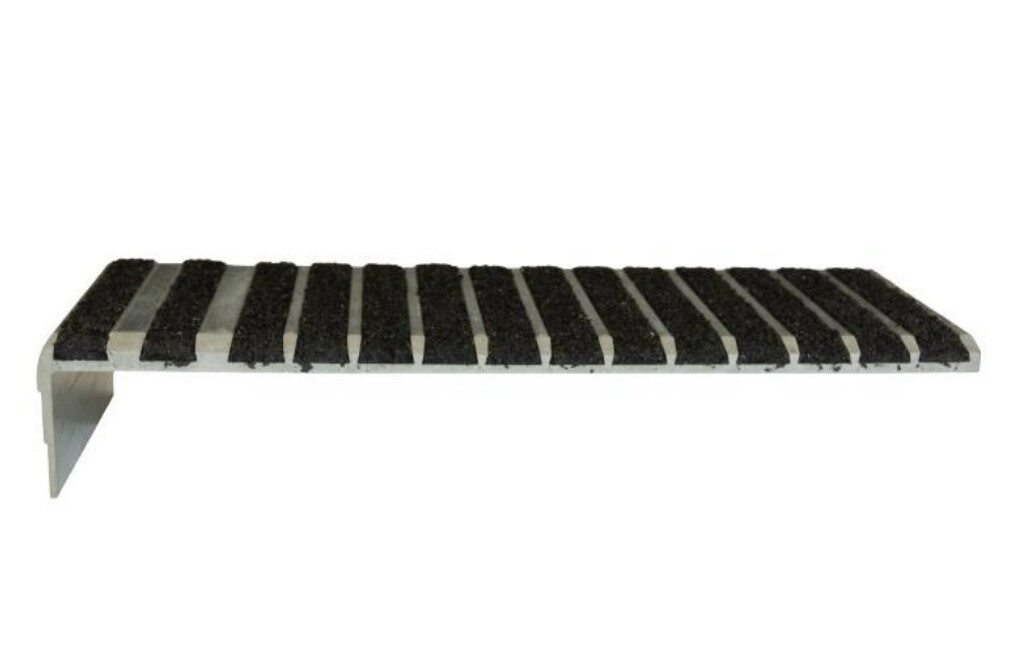

Type 500SN – width 9″ – nose 1 1/8″.
Two-tone available at additional cost
Get: or or

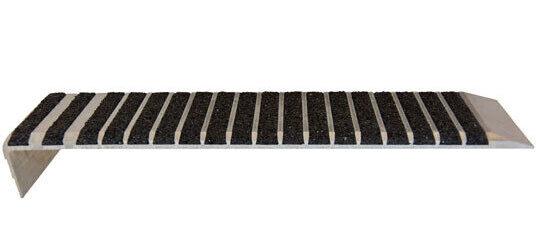

511SN
Type 511SN – width 11″ – nose 1 1/8″.
Two-tone available at additional cost
Get: or or

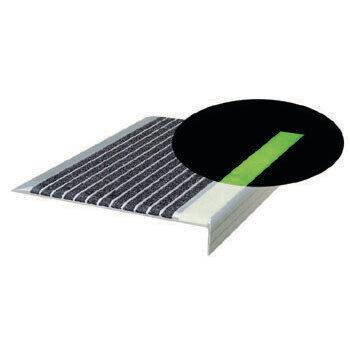

Also available in NiteGlow® (Glow in the Dark)

Type 500-NG – 9″ wide (1 1/8″ glow) – 1 1/8″ nose
Maximum piece length is 8’0″

Get: or or

sm-onwood

Coverage of landings

Full or partial coverage can be provided on landings. Use treads below to cover depths greater than 11 inches.
sm-landings

Type 162 – width 6″ – nose 1 1/8″.
Two-tone available at additional cost
Get:

182
Type 182 – width 8″ – nose 1 1/8″.
Two-tone available at additional cost
Get: or or or

630
Type 630 – width 3″
Get: or or or

Type 660 – width 6″
Get: or or or

Type 6100 – width 10″
Get: or or or

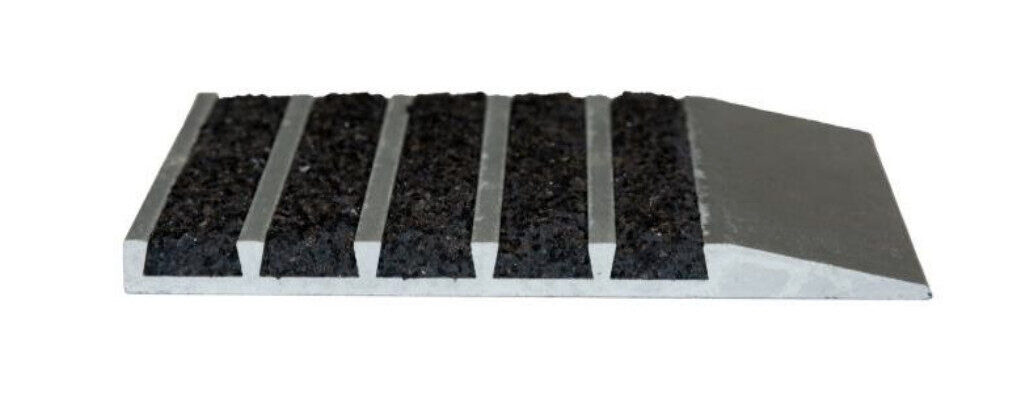

Type 540 – width 4″ (with beveled back)
Get: or or or

570
Type 570 – width 7″ (with beveled back)
Get: or or or

Example of Stairmaster® Landing

sm-customcut
